Product · Leak Sealing

Internal Sealing Bag

Name: Internal Sealing Bag
Brand: HANGYIXIAOFANG

Inserted into the pipe and inflated from inside, the internal sealing bag plugs leaks in drains and pipelines, prevents groundwater contamination and contains hazardous liquids and fire-fighting water.

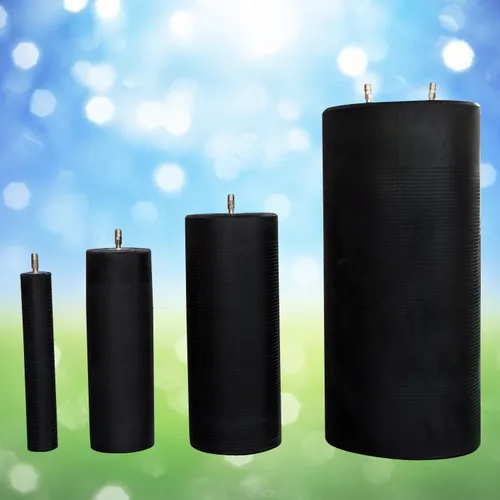

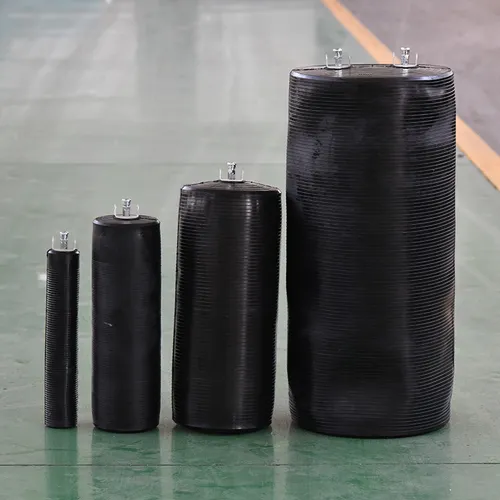

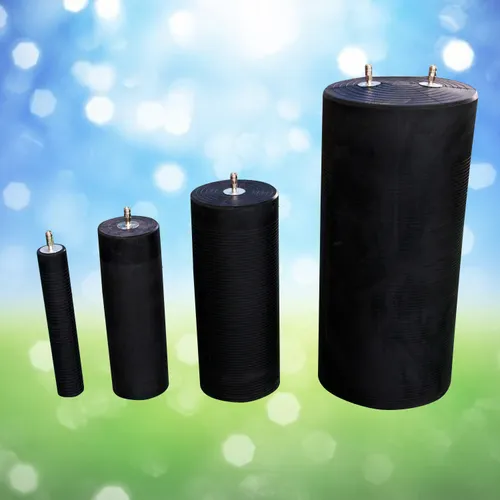

Internal sealing leak-plugging air bags in multiple sizes

Seal Pipes from the Inside, Up to 10 m Back-Pressure

The internal sealing bag is used when a hazardous-substance leak occurs — it seals culverts and drainage pipes to protect groundwater and public safety, and holds back liquids that risk polluting the environment.

2.5 bar — hugs the pipe inner wall at all points and resists a back-pressure head of at least 10 m
Long-lasting seal — one inflation seals for a long time; re-inflate as needed during repair
Rapid deployment — quick-connect coupling; insert, connect and inflate in moments
Chemical resistant — passes gasoline, acid and alkali tests without cracking

Request Quote

Features

Why Internal Sealing Bags Work

2.5 bar Operating Pressure

The bag fits tightly against the inner wall of the pipe at all points, resisting a back-pressure head of at least 10 metres.

Excellent Performance

A single inflation provides a long-lasting seal, and the bag can be re-inflated as needed to ensure smooth emergency repairs.

Rapid Deployment

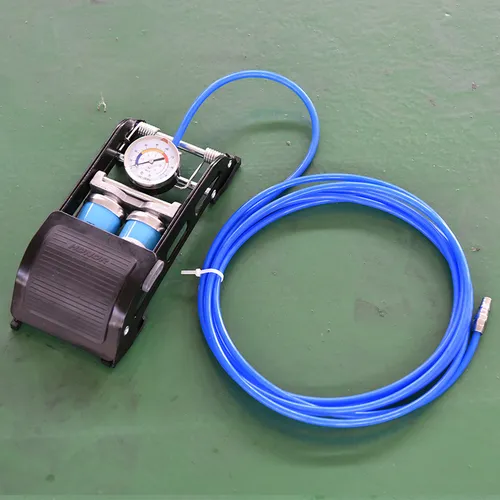

A quick-connect coupling links the air source to the bag; once inserted into the pipe it can be connected and inflated in a very short time.

Specifications

Specifications & Models

No.	Item	Test Condition	Indicator
1	High & low temperature resistance	-25°C / 60°C × 2h folding	Crack-free
2	Gasoline resistance	97# gasoline, 1 h	No cracks, non-sticky
3	Acid resistance	80% H₂SO₄, 60% HNO₃, 30% HCl, 1 h	Impermeable, non-stick, non-brittle
4	Alkali resistance	6.1 mol/L NaOH, 1 h	Impermeable, non-stick, non-brittle
