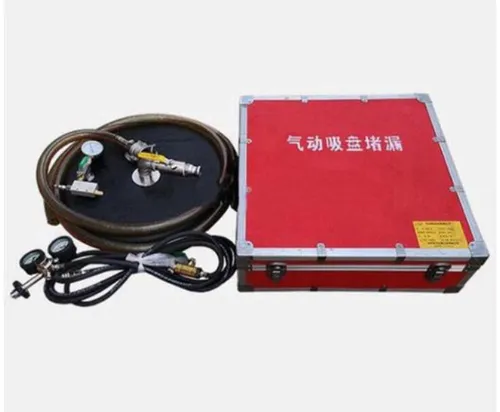

Pneumatic Sealing Suction Cup
A vacuum suction cup that seals leaks on tanks and containers and drains hazardous liquid under control — no tensioning straps required.
Seal & Drain Tank Leaks Under Control
Suitable for oil tankers, liquid tank trucks, large containers and oil storage tanks, the suction cup creates a vacuum seal over the leak site while allowing liquid to drain through a discharge chamber — enabling the controlled drainage of hazardous substances.
- No straps — the 200 mm circular pad forms a vacuum seal by itself
- Controlled drainage — discharge chamber allows safe removal of hazardous liquid
- Robust build — compact vacuum nozzle and high-quality steel connectors
- Optimal efficiency — 200 mm diameter ensures efficient drainage
Technical Specifications
Vacuum Seal, No Straps

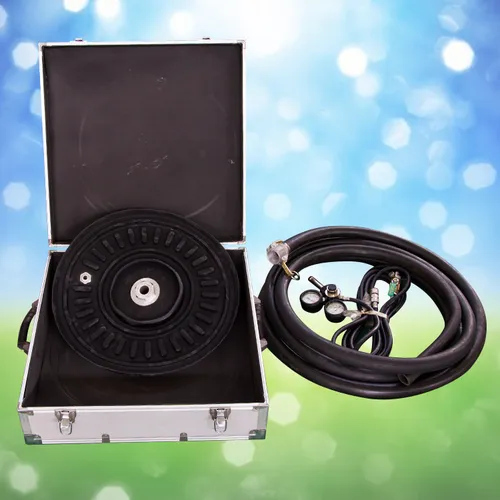

The 200 mm circular sealing pad creates a vacuum seal over the leak while allowing liquid to drain through a discharge chamber.
Application Limits
Surface angle ≤ 45°; discharge hose must remain open; leak-point pressure ≤ 3 bar; close the valve when the low-pressure gauge reads 8 bar.
Applications
Oil tankers, liquid tank trucks, large containers and oil storage tanks.
Operating Procedures
Assemble
Assemble the discharge valve, discharge hose and suction pad.
Connect

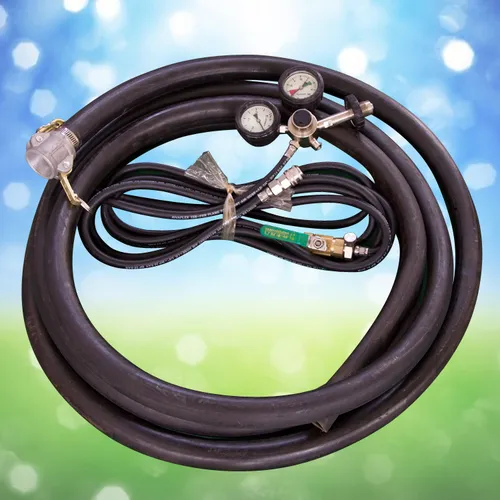

Connect the pressure reducer to the breathing-air cylinder and the connecting hose.
Cover
Place the suction pad over the leak site and attach the discharge hose.
Pressurise
Open the cylinder valve and adjust the low-pressure gauge to create the vacuum seal.
